All Digital Engineering Solutions in Dystlab Store
This category contains all Dystlab digital solutions. Use the filter to reduce your search criteria in the catalog.
How to use a content
All items in the catalog are available under a subscription plan. Most of the content are intended for use in the TechEditor environment, so make sure you have this software installed on your computer.
0029. Evaluation of target coordinates for a military drone. Design Sheet
A calculation sheet for determining the coordinates of a military drone target. The coordinates are calculated on the basis of the differential equations of motion of a solid body, taking into account the forces of resistance.
0030. Calculation of the total resistance of an electrical circuit
A report template for determining the total resistance of an electrical circuit.
0031. Billboard Design + Estimate for Materials and Labor (Ukraine)
The report contains a calculation of the billboard structure in accordance with Ukrainian building codes. The ULS and SLS were checked, including strength, stability, and deformation. The main focus is on the wind load, which is crucial for such structures.
0032. Determination of load combination and ultimate load for a continuous beam according to Eurocode EC2 (example)
Determine the appropriate load combination and ultimate load for a continuous beam. Fully editable automatically calculated example with units of measurement.
0034. Calculation of continuous reinforced concrete beam using finite element method and analytical expressions
A digital technical document on the calculation of a reinforced concrete continuous beam using an analytical approach and the finite element method (FEM). The file is a full-fledged engineering study that can be used as a template for structural engineers or an example for students and teachers.
0035. Calculation of the solar panel frame
Документ містить розрахунок каркасу сонячної панелі згідно норм проєктування України (ДБН, ДСТУ). Визначення параметрів напружено-деформованого стану конструкції виконано за допомогою методу скінченних елементів (версія TechEditor 3.19 та вище). Модель формується автоматично, на основі аналітичних даних про геометрію конструкцію. Розміри елементів, властивості перерізів, характеристики навантажень та інші дані представлені у звіті параметрично і можуть бути змінені у кілька кліків.
0036. Automated calculation of reinforced concrete continuous beam for a hotel and restaurant complex
Автоматизований розрахунок залізобетонної нерозрізної балки з перевірками перерізів на міцність та деформації.
0037. Calculation of reinforced concrete section for strength and stiffness (report template)
Report template with calculations of reinforced concrete section for strength and stiffness.

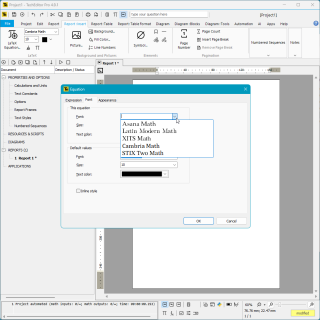

0039. Mathematical fonts for TechEditor
Mathematical fonts that can be used to type formulas in TechEditor reports.
0041. Finite Element Analysis of the 2D Frame
An example of numerical modeling of a flat frame structure using the finite element method in Dystlab TechEditor. It can be used as a template for an engineering project or as a training material for students of technical specialties.
0042. [AISC/ACI] Base Plate for Concentric Axial Compressive Load. Report with Automatic Formulas for Steel Design (LRFD / ASD)
This engineering report is a structured template for the automated design of a steel column base plate in accordance with the AISC and ACI U.S. design codes. It combines analytical design equations with parametric input data. The document is ready for use as is or as part of a larger project.
0044. Linear cross-interpolation. Calculator
Design engineers can benefit significantly from this calculator, as building codes & standards often includes tabular data that requires interpolation to obtain intermediate values. For example, this digital solution can be applied to the design of bridge structures, as shown in our example.
